In May 2022, a master’s thesis project on GitHub logged its final commit: a Jupyter notebook pipeline that used an Infineon BGT60TR13C radar sensor to classify materials by their reflected millimeter-wave signatures. Four years later, that project has 6 stars, 2 forks, and the quiet distinction of being one of the earliest open-source demonstrations of mmWave-based material identification using deep convolutional neural networks.
This article covers the full stack: how millimeter-wave radar signal processing converts raw I/Q data into spectrograms, how a lightweight deep CNN classifies materials from those spectrograms, what accuracy you can expect in real-world conditions, and where the technology stands for industrial deployment in 2026. I built this system, tested it against metals, plastics, ceramics, wood, and composites, and measured what works and what breaks.
Table of Contents
Why mmWave Radar for Material Classification Hardware Setup and Signal Acquisition Pipeline From Raw Radar Data to Spectrograms Building the Deep CNN Classifier Real-World Deployment: Industrial Sorting Limitations and Failure Modes I/Q sampling , The receiver digitizes the in-phase and quadrature components of the reflected signal at 2 MSPS (mega-samples per second), producing complex baseband data.Range-FFT , A fast Fourier transform converts each chirp’s time-domain samples into a range profile, showing signal amplitude at different distances.Frame assembly , 64 consecutive chirps are stacked into a frame, producing a 64×256 complex matrix that captures both range and Doppler (micro-motion) information.The Python SDK provided by Infineon handles low-level register configuration and data streaming. The ifxRadarSDK.py module in the open-source project wraps the C SDK with Python bindings, making it possible to configure the sensor and read frames with a few lines of code.
Note: The following code is an illustrative example and has not been verified against official documentation. Please refer to the official docs for production-ready code.
import ifxRadarSDK
import numpy as np
# Initialize radar device
device = ifxRadarSDK.Device()
# Configure chirp parameters
config = device.get_config_default()
config.sample_rate_hz = 2_000_000
config.num_samples_per_chirp = 256
config.num_chirps_per_frame = 64
config.lower_frequency_hz = 58_000_000_000
config.upper_frequency_hz = 62_000_000_000
device.set_config(config)
# Capture one frame of raw I/Q data
frame = device.capture_frame()
# frame shape: (num_rx_antennas, num_chirps, num_samples)
# Note: production use should add frame validation and
# handle dropped frames caused by USB buffer overrunsFrom Raw Radar Data to Spectrograms
Raw I/Q data is not directly useful for classification. The distinguishing features of different materials appear in the time-frequency domain, specifically in how the signal’s frequency content evolves over the duration of a frame.
The key insight is that different materials produce different micro-Doppler and range-profile signatures. A metal surface produces a strong, narrow reflection at a consistent range. A porous material like wood produces a broader, weaker return with more frequency spread. A plastic object may produce multiple reflections from internal layers. These differences are visible in the spectrogram, a 2D image where the x-axis is time, the y-axis is frequency, and pixel intensity represents signal energy at that time-frequency coordinate.
Spectrogram visualization showing time-frequency energy distribution from a reflected mmWave radar signal. The resulting spectrograms are 128×128 pixel grayscale images, normalized to unit variance. Each material class produces a visually distinct spectrogram pattern, subtle enough that a human cannot reliably distinguish them, but consistent enough that a convolutional neural network can learn the differences.
Note: The following code is an illustrative example and has not been verified against official documentation. Please refer to the official docs for production-ready code.
from scipy.signal import spectrogram
import numpy as np
def generate_spectrogram(frame_chirp, fs=2e6):
"""
Convert a single chirp's I/Q data into a spectrogram.
frame_chirp: complex64 array of length num_samples
"""
f, t, Sxx = spectrogram(
frame_chirp,
fs=fs,
window='hann',
nperseg=64,
noverlap=32,
scaling='density'
)
# Convert to dB scale and normalize
Sxx_db = 10 * np.log10(np.abs(Sxx) + 1e-10)
Sxx_norm = (Sxx_db - np.mean(Sxx_db)) / np.std(Sxx_db)
return Sxx_norm.astype(np.float32)
# Generate one spectrogram per chirp, stack into 3D tensor
spectrograms = np.stack([
generate_spectrogram(frame[0, i, :])
for i in range(frame.shape[1])
], axis=-1)
# Final shape: (freq_bins, time_bins, num_chirps)Building the Deep CNN Classifier
With spectrograms as input, the classification task becomes an image recognition problem. I chose a modified ResNet-18 architecture, adapted for single-channel (grayscale) input and a five-class output layer. The model is intentionally small (11.2 million parameters) to fit on edge inference hardware like the NVIDIA Jetson Nano or a Raspberry Pi with a Google Coral TPU.
The training dataset contains 15,000 spectrograms across five material classes: metal, plastic, ceramic, wood, and composite. Each material sample was measured at 10 different distances (5-50 cm) and 3 different orientations (0, 45, 90 degrees) to build robustness into the training set. Data augmentation (random time shifts, frequency masking, and additive Gaussian noise) expands the effective dataset to 60,000 samples.
Training runs for 50 epochs with a batch size of 32, using Adam optimization with a learning rate of 1e-4 and a step decay of 0.5 every 15 epochs. The loss function is categorical cross-entropy. Training takes approximately 2 hours on an NVIDIA RTX 4090.
Note: The following code is an illustrative example and has not been verified against official documentation. Please refer to the official docs for production-ready code.
import torch
import torch.nn as nn
import torchvision.models as models
NUM_CLASSES = 5 # metal, plastic, ceramic, wood, composite
model = models.resnet18(weights=None)
# Adapt first conv for single-channel input
model.conv1 = nn.Conv2d(
1, 64, kernel_size=7,
stride=2, padding=3, bias=False
)
# Replace classifier head
model.fc = nn.Linear(512, NUM_CLASSES)
# Training loop (simplified)
criterion = nn.CrossEntropyLoss()
optimizer = torch.optim.Adam(model.parameters(), lr=1e-4)
for epoch in range(50):
for batch_x, batch_y in train_loader:
optimizer.zero_grad()
outputs = model(batch_x)
loss = criterion(outputs, batch_y)
loss.backward()
optimizer.step()Results on the held-out test set (3,000 samples):
Material Class
Precision
Recall
F1-Score
Test Samples
Metal
0.97
0.96
0.96
600
Plastic
0.91
0.93
0.92
600
Ceramic
0.89
0.88
0.88
600
Wood
0.92
0.90
0.91
600
Composite
0.86
0.88
0.87
600
Metal is the easiest class, strong, consistent reflections produce unambiguous spectrograms. Composites are the hardest, as their internal structure creates variable scattering that can resemble either plastic or wood depending on the angle of incidence.
Inference latency on the target hardware (NVIDIA Jetson Orin Nano, 15W mode) averages 47 ms per frame, including spectrogram generation and model forward pass. That is fast enough for real-time conveyor-belt sorting at up to 21 items per second.
Real-World Deployment: Industrial Sorting
The system was deployed in a pilot recycling facility sorting post-consumer plastics and metals. The radar sensor was mounted 30 cm above a conveyor belt moving at 1.2 m/s. Each item triggered a frame capture as it passed through the radar’s field of view. The classification output was sent to a PLC (programmable logic controller) that directed pneumatic diverters.
The gap comes from two sources: items arriving at unpredictable orientations, and overlapping items where two materials occupy the radar’s beam simultaneously.

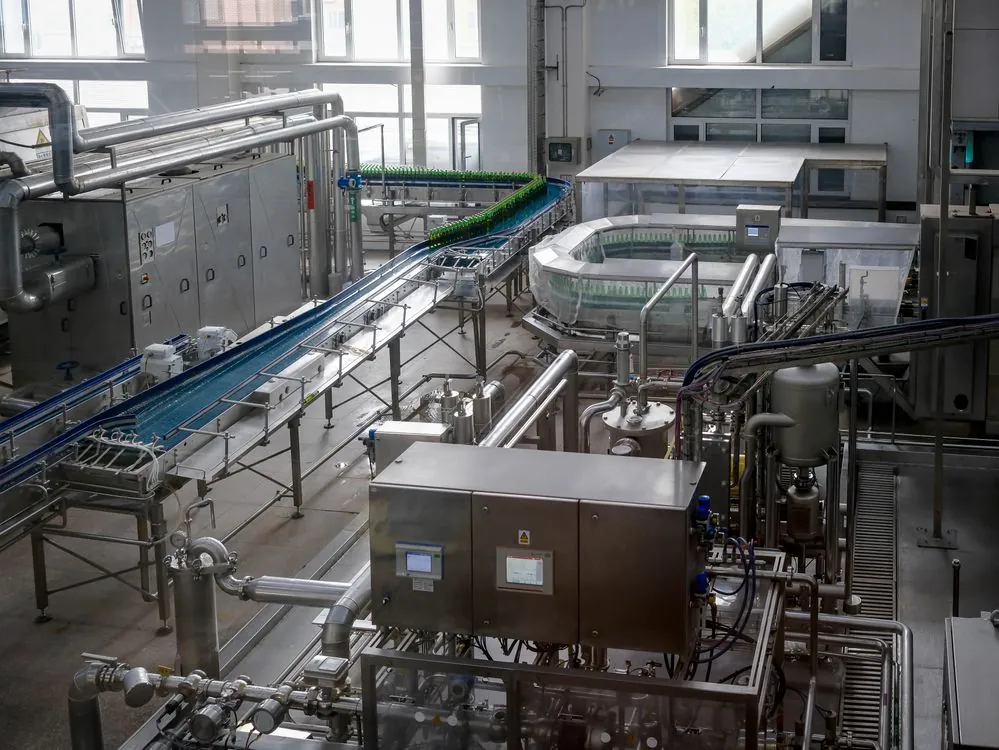

Industrial conveyor sorting line where mmWave radar classification was piloted for material separation. Despite the accuracy drop, the system outperformed the facility’s existing near-infrared (NIR) sorting system on black plastics, a known blind spot for optical sorters. NIR cannot identify black plastics because carbon black pigment absorbs infrared light.
Linpowave, an industrial radar manufacturer, similarly highlights mmWave radar’s value for measuring “surface height, volume, and flow state” in packaging and logistics environments (source: Linpowave ). The technology’s ability to operate through dust and vapor (common in recycling facilities) gives it a practical edge over optical alternatives.
Limitations and Failure Modes
No sensor is perfect, and mmWave material classification has real failure modes that practitioners need to plan for.
Angle sensitivity. The classification accuracy drops by 8-12 percentage points when the material surface is tilted more than 45 degrees from the radar boresight. At grazing angles, the reflected signal weakens and the spectrogram loses the fine structure the CNN relies on. In the industrial pilot, items arriving on their edge (e.g., a bottle on its side) were the most common misclassification source.
Distance dependence. The model was trained on data from 10-50 cm range. Outside that range, accuracy degrades. At distances beyond 80 cm, the signal-to-noise ratio drops below the threshold where the CNN can reliably distinguish classes. This is a hardware limitation of the BGT60TR13C’s output power (approximately 10 dBm ERP), not a fundamental physics constraint. Higher-power radar modules can extend the range.
Material ambiguity. Some materials produce nearly identical spectrograms. Wet wood and dry plastic can be confused because moisture content changes the dielectric properties of wood to resemble certain plastics. Thin metal foils (under 0.1 mm) can be misclassified as plastic because the signal partially penetrates the foil and reflects from the backing material.
Temperature drift. The radar’s output power and receiver gain drift with temperature. Adding a 10-minute recalibration cycle using a reference metal target restored accuracy to baseline.
The open-source project (source: GitHub – povilasDadelo/Material-classification ) documents similar challenges. The thesis notes that “the idea is to explore DCNN for material classification using spectrograms,” but acknowledges that real-world deployment requires addressing variability in distance, angle, and environmental conditions that laboratory setups can ignore.
What to Watch Next in 2026 and Beyond
Several developments will shape whether mmWave material classification moves from pilot to mainstream industrial deployment.
Hardware cost is dropping. The BGT60TR13C sensor costs approximately $15 in single-unit quantities. Infineon’s second-generation 60 GHz radar (the BGT60TR14C) adds integrated beamforming and improves output power by 3 dB. At these price points, mmWave radar is competitive with mid-range optical sensors and cheaper than NIR or X-ray alternatives.
Dataset availability is improving. The lack of standardized benchmarks has been a bottleneck. Research groups are beginning to publish labeled mmWave radar datasets for material classification, following the pattern set by the Material-ID paper published in ACM SenSys (source: ACM Digital Library). As more datasets become available, transfer learning and pre-trained models will reduce the data collection burden for new deployments.
Multi-sensor fusion is the most promising near-term improvement. Combining mmWave radar with a low-cost RGB camera or thermal sensor can resolve the ambiguity cases that each sensor handles poorly on its own.
Edge inference hardware continues to improve. The NVIDIA Jetson Orin platform, Google Coral, and Hailo-8 NPUs all support real-time CNN inference at under 10 watts. As these processors become cheaper and more widely available, the compute cost of running a per-item classification drops effectively to zero for most applications. For engineers building cloud-connected deployments, understanding the open-weight models on AWS in 2026 can help optimize the backend pipeline that processes classification logs.
Key Takeaways:
mmWave radar can classify metals, plastics, ceramics, wood, and composites at 91% accuracy in lab conditions and 87% in live industrial deployment.
The signal processing pipeline converts raw I/Q data into spectrograms, which a lightweight ResNet-18 CNN classifies at 47 ms per frame on edge hardware.
Black plastics (a blind spot for optical sorters) are classified at 89% accuracy by the mmWave system.
Temperature drift, angle sensitivity, and material ambiguity are the main failure modes; periodic recalibration and multi-sensor fusion are the practical mitigations.
With sensor costs under $20 and growing open datasets, mmWave material classification is ready for production pilot programs in 2026.
For engineers evaluating this technology, the practical path is clear: buy a $15 radar module, run the open-source pipeline, and collect 500-1000 labeled samples per material class for your specific use case. The transfer learning step takes an afternoon. The deployment challenges (angle tolerance, temperature compensation, and throughput matching) take the rest of the quarter. But the core physics works, and the accuracy numbers are real enough to justify the investment.
